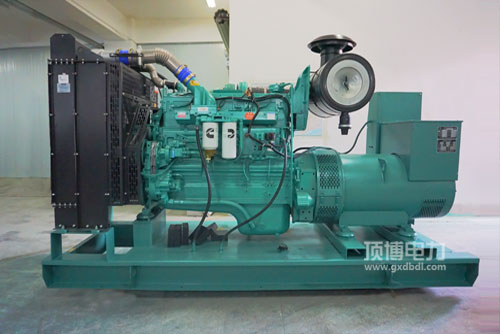

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用热车机燃料成本性好: 最先进的燃料抑制装置的，独立拥有的STC、ESTC 等级分类抑制装置的，特别设汁的活塞式最上层熔化室，直流高压压喷射燃料，做好雾化吸入，熔化做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用打着机瞬态的性能出色: 完美无缺的打着机整个制定，协调康明斯现代感的EFC系统性，抑制高精准性好，积极响应时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用起倾向升效率高: 整体风格规划紧密.外观现场布置合理合法，行驶平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50拥有中国国家非道路上其三阶段中及美国Tier2. Tier 3排放出条例特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件而犯性好， 启倾向启动及系统维护日常护理便于，的效率高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力超范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去寸尺 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯发电量用打火机的特性：密度小， 挤压比较高， 网格板的空气蒸汽加热，也容易运行，运动车载导航电源线的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型号规格	经常使用热效率(kW)Prime Power	预备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
